Wafer Resilient-Seated Butterfly Valve

Service conditions

A butterfly valve changes the available flow area as its disc rotates about the stem. Its compact rotary arrangement is widely used for pipeline isolation. Flow-control duty also requires assessment of disc position, differential pressure, flow response and actuator control capability.

A resilient seat seals through contact and deformation where it meets the disc. Match the seat material to the fluid, temperature and cleaning conditions. Aging, swelling and trapped particles can affect operating torque and the sealing surface.

Construction and description

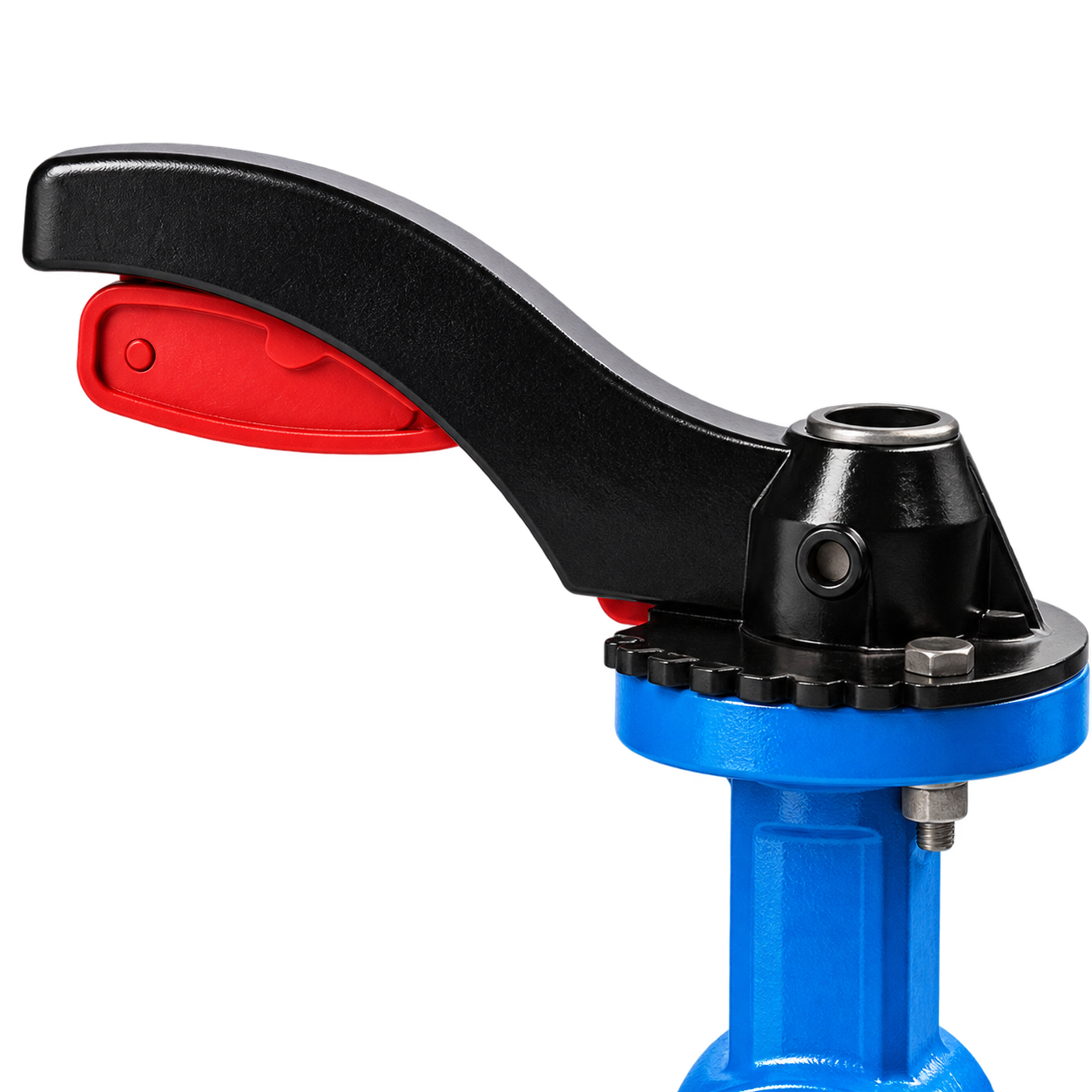

Match the operator to the valve load and site operating method. Manual operation needs accessible clearance. Frequent cycling or remote control also calls for assessment of output capability, duty and position feedback.

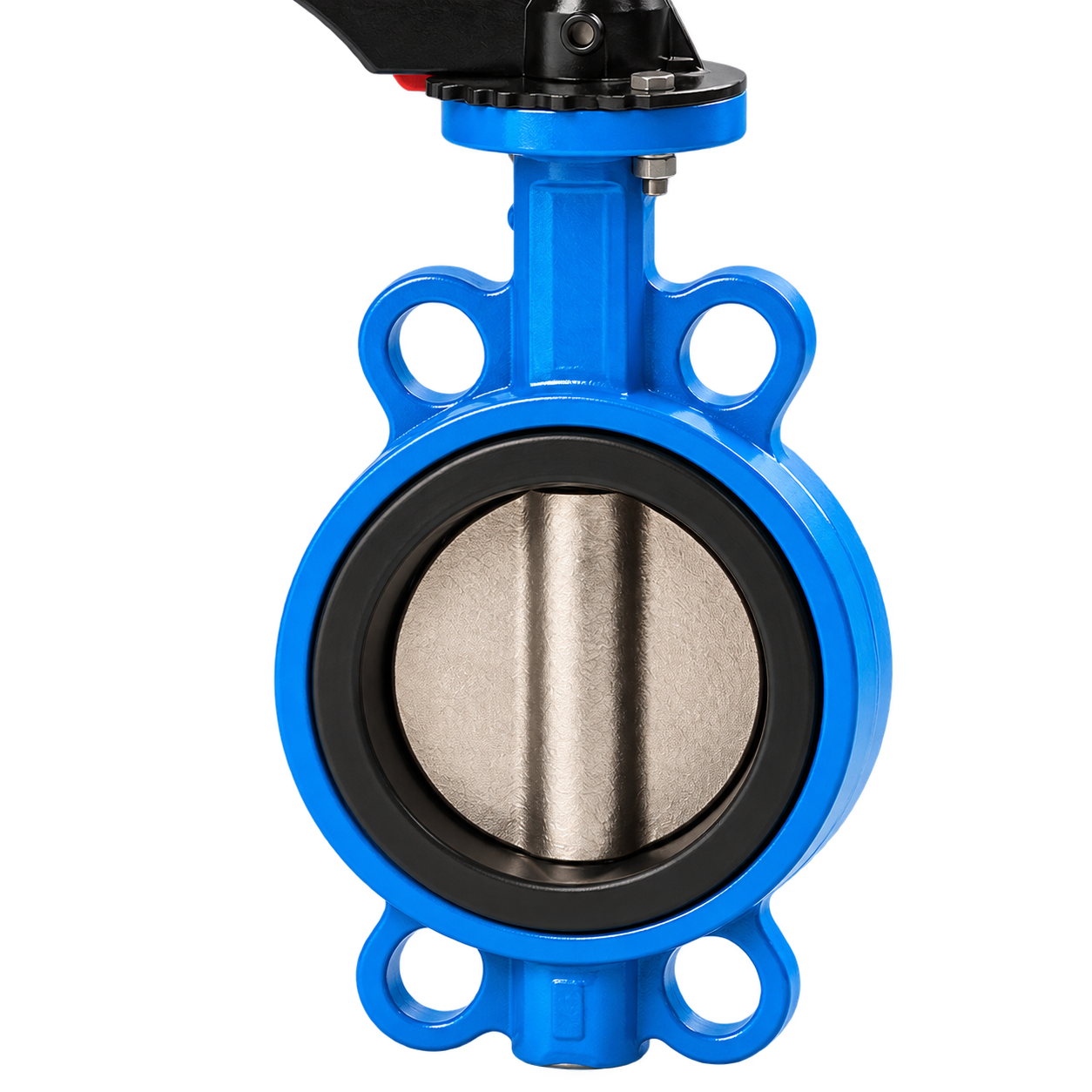

Wafer installation places the valve between mating flanges. Check flange standard, pipe bore, bolt arrangement and clearance for moving internal parts. Additional gasket requirements depend on the seat and connection design.

Define fluid composition and continuous and start-stop operating conditions, then assess body, internals and seals as a combination. Particles, deposits and cleaning affect sealing surfaces and mechanisms; plan maintenance for the actual service.
